6U Small Outdoor Telecom Enclosure Pole Mounted With Anti Theft Three Point Lock
1. Description Of Outdoor Telecom Cabinet
The outdoor cabinets are widely used for Telecom, Power, Electricity and so on, in 4G and coming 5G.This series outdoor cabinet will be more and more used to substitute the shelter of the Base Station, also used for the broadband and optical fiber hub. We provide the Outdoor Cabinet, and solution integrated with temperature controlling, power supply, monitoring systems and so on, customized with enough discussion with customers, the users only need to put main equipment inside.
2. Selling points and Feature Of Outdoor Equipment Cabinet
- External Dimension is W×D×H 435×460×736mm
- Galvanized steel,double wall
- Anti-theft three point lock
- The cabinet includes 19” standard installation rack.
- The cabinet cooling uses 4 fans 100W TEC.
3. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | Cabinet External Size : 435mm×460mm×736mm (W×D×H), Cabinet Internal Size : 6U× 380×19” (W×D×H) |
| Layout | One compartment |
| Equipment Installation Method | 19″ Data Rack Rails |
| Door | The cabinet door uses embedded structure. The door includes a 3 point locking system with key-lock swing handle.The cabinet door uses embedded structure |
| Material | The cabinet is made of hot dip galvanized steel,cabinet, with 20mm heat insulation between the two walls |
| Structure | double walls structure |
| Ingress Protection | IP55 |
| Temperature Control | Cooling | 4 fans 100W TEC |
| Temperature | Temperature | Working Temperature: -40°C ~ + 60°C |
| Storage Temperature: -50°C ~ + 70°C |
| Transport Temperature: -50°C ~ +70°C |
| Humidity | Relative Humidity | ≤95% (at + 40°C) |
| Pressure | Air Pressure | 70kPa ~ 106kPa |
| Cabinet load bearing | | ≥600kg |
4. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set | Cabinet External Size : 435mm×460mm×736mm (W×D×H), Cabinet Internal Size : 6U× 380×19” (W×D×H) |
| 2 | Fan | 4 | Set | 4 set Fans |
| 3 | Package | 1 | Set | Wooden Case |
| 4 | TEC | 1 | Set | 100W |
| 5 | Door detector | 1 | Set | |
| 6 | LED LAMP | 1 | Set | DC48V LED LAMP |
5. Enclosure Cooling
4 Pcs DC48V Fans and 1 set TEC
6. Cabinet Structure
(1) Cabinet External Size : 435mm×460mm×736mm (W×D×H),
Cabinet Internal Size : 6U× 380×19” (W×D×H)
(2) One compartment; The cabinet door uses embedded structure. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theft-proof three point lock, supports padlock.
(3) The cabinet is a double-wall cabinet, with 20mm heat insulation between the two walls

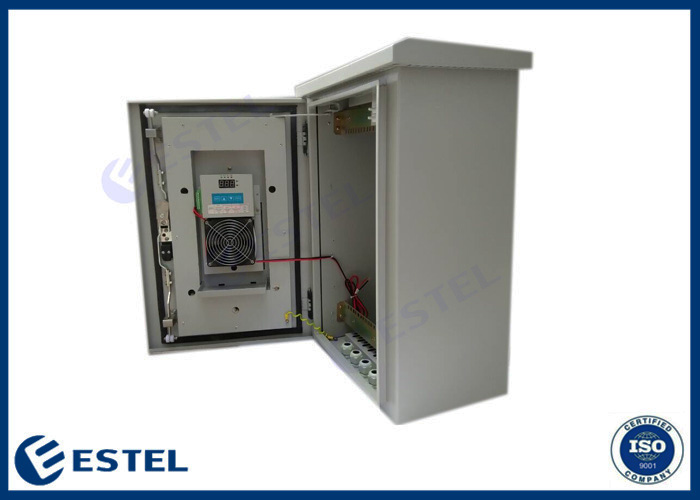

7. Cabinet Picture:
8. Factory Introduction
Factory Size: 3000 Square Meters
No. of Main Production Lines: 5
Contract Manufacturing: OEM Service Offered, Design Service Offered, Buyer Label Offered
Production Experience: 13 Year
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
